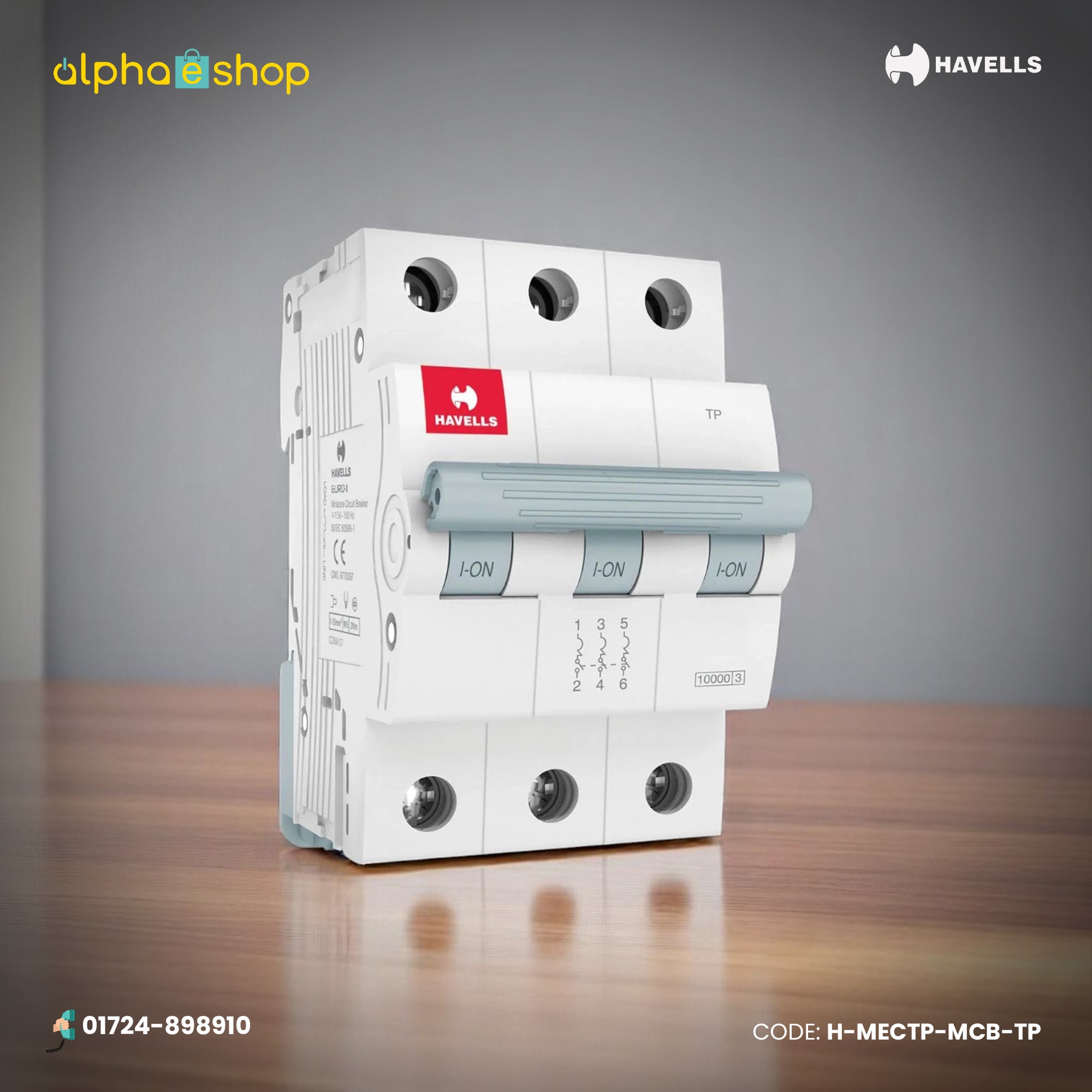

Miniature Circuit Breaker(MCB) 10KA | H-MECTP-MCB-TP

Miniature Circuit Breaker(MCB) 10KA | H-MECTP-MCB-TP

Tk 1,240 BDT
Tk 1,460 BDT
Tk 1,240 BDT
MECSP: 6 Amp
Subtotal: Tk 1,240 BDT
Please hurry! Only 100 left in stock
10 customers are viewing this product
Specifications Technical Specification Execution pole Triple Pole (TP) Rating 32 A Type C Curve Key Features Application Suitable for protection...
Description

Specifications

Technical Specification
Execution pole Triple Pole (TP)
Rating 32 A
Type

C Curve

Key Features

Application
  • Suitable for protection against overload & short circuit for Motor and other Inductive loads
Rating : 0.5 A to 63 A

Safety Terminals

 To avoid improper cable termination, the safety terminals guide the cable towards the cage terminal for systematic termination

Bi Stable Clip

 Every device is provided with a dual position DIN rail clip, so it becomes much easier to change a device from a device bank connected to a bus-bar, without disturbing the existing wiring

Large Cable Terminals

 Suitable for copper and aluminum cables, these terminals are compatible with cables upto 35 mm 2 cross section area

Operation

Cooler Operation

 Grooves provided on outer body, so that when individual poles are placed adjacent to each other in a distribution board it forms a very effective channel for better air circulation, resulting into a cooler operation

power



Low power consumption

  		Consumes less power, thus cost effective and energy saving.

13 Plates Arc Chute for effective arc quenching

 The arc extinguishing device comprises of 13 plates arc chute. The arc under the influence of the magnetic field and arc guide is moved into th arc chute where it is rapidly split and quenched.

Action

Precise hammer action

 A hammer directly connectd to the plunger strikes the moving contact arm with a force proportional to the peak current there by forcibly separating the moving contact from the fixed contact much before the latch mechanism operates.this further reduces the opening time of the circuit breaker.

Trip free mechanism

 A circuit-breaker, the moving contacts of which return to and remain in the open position when the automatic opening operation is initiated after the initiation of the closing operation, even if the closing command is maintained.

Warranty  -
